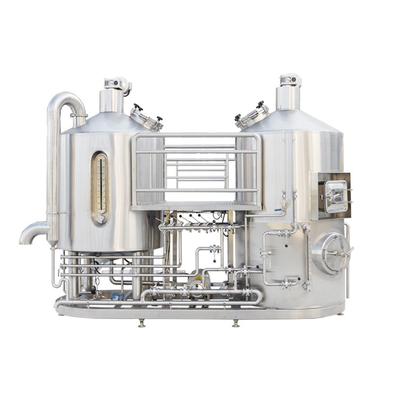

food & Premium Beverage Factory Brewery 4bbl Equipment 500l Brewing System Beer Machine Equipment

1 Set
MOQ
$50,000.00(1 - 1 Sets) $49,800.00(2 - 2 Sets) $49,500.00(>=3 Sets)
preço
food & Premium Beverage Factory Brewery 4bbl Equipment 500l Brewing System Beer Machine Equipment
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Processing: Fermenting Equipment
Applicable Industries: Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other
Showroom Location: Canada, France
Condition: New
Processing Types: Beer
Voltage: 220/380V or customization
Power: 35KW
Dimension(L*W*H): 35 Cubic Meter
Weight: 5000 KG
Warranty: 3 years
Machinery Capacity: 50L, 100L, 200L, 300L, 400L, 500L, 600L, 700L, 800L, 1000L, 1200L, 1500L, 1800L, 2000L, 2500L, 3000L, 3500L, 4000L, 5000L, 10000L, 20000L, 50000L
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC, Other, Bearing
Key Selling Points: High quality
Marketing Type: New product 2021
Video outgoing-inspection: Provided
Capacity: 500-2000L
Material: SUS304/SUS316/red Copper
Certificação: CE;ISO
Inner shell thickness: 3mm
Outer shell thickness: 2mm
Heat Insulation: Polyurethane-thickness:100mm
Cooling way: Dimple jacket plate
Cleaning way: CIP in situ cleaning,with rotary spray cleaning ball
Usage: DIY Beer
After Warranty Service: Video technical support, Online support, Spare parts
Informação básica
Certificação: CE;ISO
Condições de Pagamento e Envio
Packaging Details: Plastic Seal Film; Support and protective frame; Wooden Case;
Supply Ability: 500 Set/Sets per Month
Descrição de produto
BASIC INFORMATION
Heating Mode:
Steam
Electric Voltage:
380V / 240V / 220V
Volume:
500L
Control:
Manual / Semi-auto / PLC Program
Appearance:
Luxury Red Copper Finish / Stainless Steel

General technical requirements:

√ Using 304 stainless steel material conform to ASTM standard.
√ All material contact surface and welds be sanitary polished at Ra≤0.2μm and passivated.
√ Construction with TIG welding.
√ All pipe lines and vessels pass tightness and pressure test before delivery.
√ Nozzles,inlets,outlets and connections be sealed before delivery.
√ Electrical components are from CCC certified and/or CE,CSA certified manufactures.
EQUIPMENT INTRODUCTION
Designed Wort Production:
500L
Support Production:
15000L~45000L/Month
Designed Power Consumption:
65KW/H
Mashing & Boiling Speed:
1.5℃/Min

Performance Advantages:

√ Reuse hot water from plate heat exchanger to save water and energy.
√ Scientifically designed pipe layout to avoid waste and pollution.
√ Free flow control, support all kinds of beers production.
√ Humanized and professional brewery control interface satisfy any brewing technology demand.
√ Easy, fast installation and maintenance, uniform and beautiful appearance.
√ Stable working performance, long service life.
REF. MAIN PART LIST
BREWHOUSE
EURO-TECH 2 vessels
Lauter Tun Mounted on Whirlpool Tank
Mash & Boiling Kettle
Volume: Effective 500L/1000L; Full 800L/1600L
Inner Shell: Wall thickness 3mm min.
Jacket: Dimple plate thickness=2mm min.
External Shell: Wall thickness=2mm min.
Insulation: Rock Wool thickness=100mm min.
OPTIONAL DEVICES
WE ARE READY TO WORK FOR YOU
The user or project owner can easily to start to work with us by provide the basic information as:
* The ideally production capacity per day / week / month. * Equipment operation experience of the beer maker.
* The power supply of the
* site like electricity or CNG.
* Working condition of the site such as temperature, air pressure.
* Special demand of beer style.
* The local government policy.
SHOOTS FROM CLIENTS
ABOUT MAIDILONG
22 YEARS
PREMIUM BREWING EQUIPMENT MANUFACTURING
Maidilong is a technology application-oriented manufacturing enterprise, focusing on the design and manufacturing of professional equipment for the wine, beer, food, dairy, fine chemicals, pharmaceutical and bioengineering industries. For over 22 years Maidilong's professional manufacturing experience, leading manufacturing technology, excellent equipment quality and client-driven business approach has won the support of domestic and international customers. A dedicated approach to further developing advanced product technology, rigorous manufacturing processes, quality control and supply chain management allow us to provide customers with excellent products and services.

QUALIFIED

CERTIFICATES
CLIENTS AND TRADE SHOWS
OUR MAIN PRODUCTION
