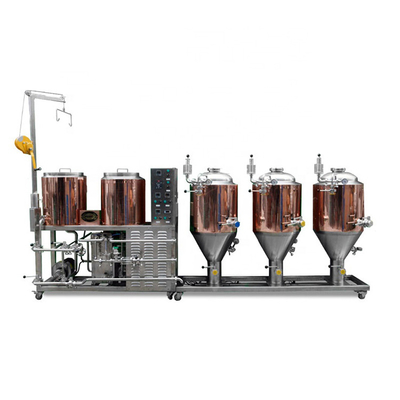

Home brew craft beer machine home beer brewing system with professional beer brewing pot

1.0 Sets
MOQ
$5,000.00(>=1 Sets)
preço
Home brew craft beer machine home beer brewing system with professional beer brewing pot
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Processing: Fermenting Equipment, Craft beer machine home beer brewing system with professional beer
Applicable Industries: Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other
Showroom Location: Canada, France
Condition: New
Processing Types: Beer
Voltage: 220/380V or customization
Power: 35KW
Dimension(L*W*H): 35 Cubic Meter
Weight: 3500KG, 300kg
Warranty: 3 years
Machinery Capacity: 50L, 100L, 200L, 300L, 400L, 500L, 600L, 700L, 800L, 1000L, 1200L, 1500L, 1800L, 2000L, 2500L, 3000L, 3500L, 4000L, 5000L, 10000L, 20000L, 50000L
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC, Other, Bearing
Key Selling Points: High quality
Marketing Type: New product 2021
Video outgoing-inspection: Provided
Product Name: beer machine home
Application: homebrew
Function: Brewing Beer Brewing Equipment
Keywords: 50L homebrew
Name: High performance 50L homebrew equipment
Material: SUS304/SUS316/red Copper
Capacity: 50-150L
After-sales Service Provided: Service Machinery Overseas, Field installation, commissioning and training
Usage: Brewery Pub Hotel
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Certificação: CE ISO
Informação básica
Certificação: CE ISO
Condições de Pagamento e Envio
Packaging Details: Plastic Seal Film; Support and protective frame; Wooden Case;
Supply Ability: 500 Set/Sets per Month
Descrição de produto
This skid is designed for pilot and small quantity craft beer brewing. It is integrated with complete professional functions of mashing, wort lautering, wort boiling, whirlpool, temperature control, pressure control, process control, fermentation.

1.4 in 1 Mashing

This skid is designed for pilot and small quantity craft beer brewing. It is integrated with complete professional functions of mashing, wort lautering, wort boiling, whirlpool, temperature control, pressure control, process control, fermentation.

Temperature Probe transfers the signal to control cabinet for precise temperature management. The Heating Coil is applied for mashing and boiling heating. The Filter Barrel separates the grain and wort, also easy to wash grain when it is raised up by the lifter. Also, it is fixed by an axis stably.

Water and wort can be circulated via the inlets and outlets, it not only enables whirlpool sediment but also makes mashing sufficiently.
A specially designed lifter is applied for lifting the grain for washing and barrel cleaning. The pump can do all the works including hot water pumping, water and wort circulation, wort whirlpool and sediment, wort transmission to fermenters, fermenter washing and cleaning.

2.Main Parts

1. Control Panel 2. Rotational Lifter 3. Glycol Tank 4. 4 in 1 Mash Tun 5. Hot Water Tank 6. Fermentation Vessel 7. Chiller 8. Wort Pump 9. Glycol Pump 10. Plate Heat Exchanger

3.General Technical Requirements

1.Using 304 stainless steel material conform to ASTM standard. 2.Medium contact surface to be sanitary polished at Ra≤4μm and passivated. 3.Construction with TIG welding. 4.All pipe lines and vessels should pass tightness and pressure test before delivery. 5.Nozzles, inlets, outlets and connections should be sealed before delivery. 6.All medium connections are Tri Clamps. 7.Electrical components are from CCC certified and/or CE, CSA certified manufacturers.
4.Typical Configurations
Model
PB501M
PB501SE
PB502M
PB502SE
PB1001M
PB1001SE
Mashing Volume
50L
50L
50L
50L
100L
100L
Glycol Tank
50L
50L
50L
50L
160L
160L
Hot Water Tank
30L
30L
30L
30L
75L
75L
Fermentation Vessel
50L*3
50L*3
100L*3
100L*3
100L*3
100L*3
Control
Manual
PLC
Manual
PLC
Manual
PLC
Plate Heat Exchanger
Dual Stages
We are providing more optional configurations,please contact our engineer for assistance.
MDL is a technology application-oriented manufacturing enterprise, focusing on the design and manufacturing of professional equipment for the wine, beer, food, dairy, fine chemicals, pharmaceutical and bioengineering industries.

For over 15 years MDL’s professional manufacturing experience, leading manufacturing technology, excellent equipment quality and client-driven business approach has won the support of domestic and international customers.

A dedicated approach to further developing advanced product technology, rigorous manufacturing processes, quality control and supply chain management allow us to provide customers with excellent products and services.
